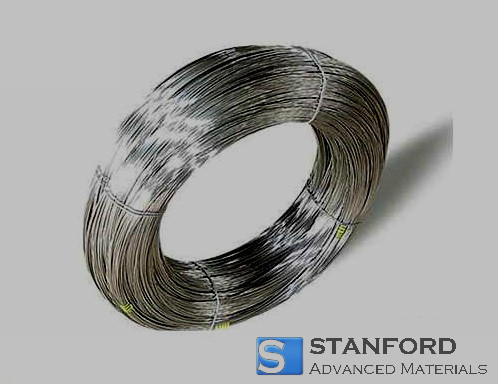

Description of Wire from the High-Performance Alloy Nickel MP35N
MP35N is an austenitic Ni-Co-Cr-Mo alloy. It exhibits a high mechanical strength and a high level of corrosion resistance as measured against standard test methods. It is resistant to stress corrosion cracking and adverse environmental conditions, and is therefore frequently selected for fastener and spring components. MP35N withstands corrosion in hydrogen sulphide, saltwater and other chloride solutions. Given these characteristics, it is often employed in components for marine environments, such as cable assemblies incorporating sensors for deep-sea measurements. It is also utilised in the automotive and aerospace industries.

Advantages
- Demonstrated corrosion resistance
- Tensile strength and ductility as detailed in the specifications
- Consistent mechanical properties at ambient temperatures
- Resistance to crevice and stress corrosion cracking
Specifications for Wire from the High-Performance Alloy Nickel MP35N
Composition Range (UNS R 300035)
|
Element
|
Weight-%
|
Element
|
Weight-%
|
Cobalt
|
30.0 Minimum
|
Chromium
|
19.0-21.0
|
Nickel
|
33.0-37.0
|
Molybdenum
|
9.0-15
|
Titanium
|
1.0
|
Iron
|
1.0
|
Carbon
|
0.025
|
Manganese
|
0.15
|
Phosphorus
|
0.015
|
Sulphur
|
0.01
|
Silicon
|
0.15
|
|
|
Maximum %, where no range is specified
|
Melting Range
|
2400-2625°F
|
1315-1440°C
|
Elastic Modulus, RT2
|
34 x 10⁶ psi
|
234 x 10³ MPa
|
Poisson's Ratio
|
0.4
|
0.4
|
Coefficient of Thermal Expansion
|
7.4 x 10⁻⁶ /°F
|
13.5 x 10⁻⁶ /°C
|
Electrical Resistivity @ RT
|
40.7 µΩ in.
|
103.3 µΩ cm
|
Thermal Conductivity
|
7.77 BTU/hr-ft-°F
|
13.4 W/m-K
|
Density
|
304 lb/in³
|
8.41 g/cm³
|
Relative Magnetic Permeability
|
1.0009 µ
|
1.0009µ
|
Specific Heat
|
0.18 BTU/lb-°F
|
753 J/kg-K
|
Condition
|
Approx. Tensile Strength
|
Approx. Operating Temperature
|
N/mm²
|
ksi
|
°C
|
°F
|
Annealed
|
800-1000
|
116-1450
|
-200 - +315
|
-330 - +600
|
Spring Temper
|
1400-1900
|
203-276
|
-200 - +315
|
-330 - +600
|
Spring Temper + Aged
|
1900-2200
|
276-319
|
-200 - +315
|
-330 - +600
|
Standards
AMS 5758
AMS 5844
AMS 5845
ASTM F-562
Applications of Wire from the High-Performance Alloy Nickel MP35N
- Fastening components for aircraft
- Cabling for offshore well instrumentation
- Biomedical devices
- Applications where fatigue endurance specifications are met
