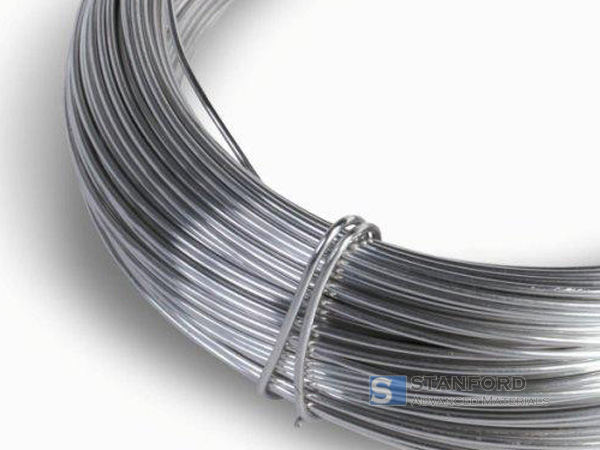

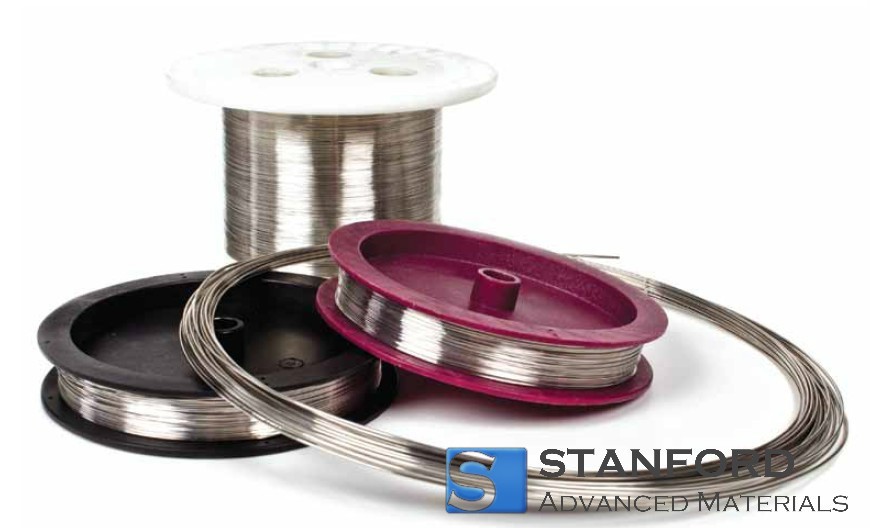

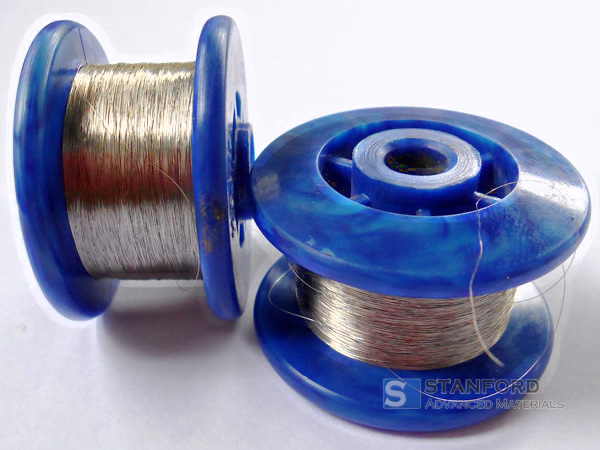

Platinum Wire Description
Platinum Wire possesses inert properties, a high melting point, ductility and resistance to corrosion and oxidation, making it suitable for a wide range of applications. High-quality Platinum Wire is available from Stanford Advanced Materials (SAM). Backed by extensive experience and expertise in the metal industry, Stanford Advanced Materials (SAM) manufactures and supplies Platinum Wire (Pt-Wire) globally, and we are equipped to produce custom forms of pure platinum metal or platinum alloys to your specifications.
Platinum Wire Specification
Materials:
The purity of platinum metal: 99.99%, 99.95%
Platinum alloys: platinum-iridium alloy (5%, 10%, 20% iridium), platinum-gold alloy, Thermocouple Wire (Platinum-Rhodium Wire)
Diameter: 0.10 mm (0.004") – 4.0 mm (0.16")
Shape: round, semi-round or square
Platinum Wire Applications
Platinum Wire is applicable in the following industries due to its inert properties, high melting point, ductility and resistance to corrosion and oxidation:
- Metallurgy
- Petrochemicals
- Electronics
- Aerospace
Platinum wire is used in medicine, aerospace, military applications and electrical engineering. The chemical stability of platinum makes it suitable for medical implants. It also finds use in aircraft engines, heat exchangers, turbines and infrared detectors. In semiconductor manufacturing, platinum wire exhibits reliable performance.

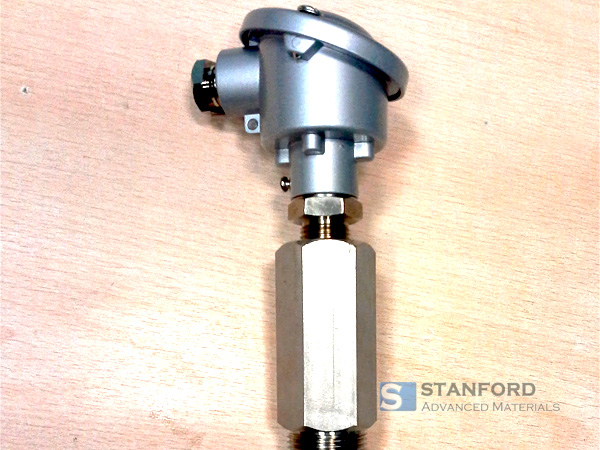

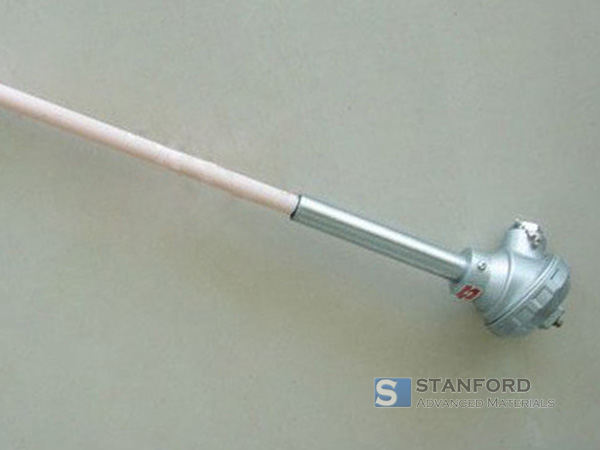

- Platinum-Rhodium Thermocouple Wire (Pt-Rh Thermocouple Wire)
* Thermocouple Wire Type R: (+) 87% Pt, 13% Rh; (-) 100% Pt
* Thermocouple Wire Type S: (+) 90% Pt, 10% Rh; (-) 100% Pt
* Thermocouple Wire Type B: (+) 70% Pt, 30% Rh; (-) 94% Pt, 6% Rh
* Wire diameter/mm (inch): 0.03 (0.001) – 0.81 (0.032)

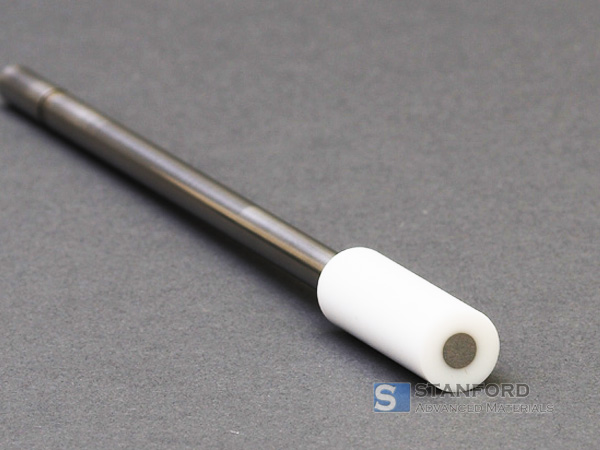

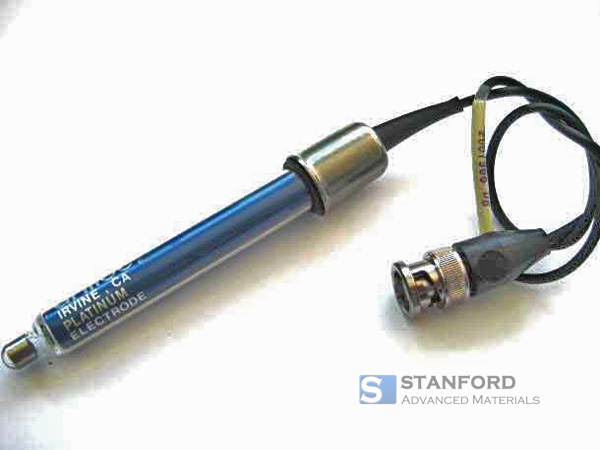

-Platinum Electrodes

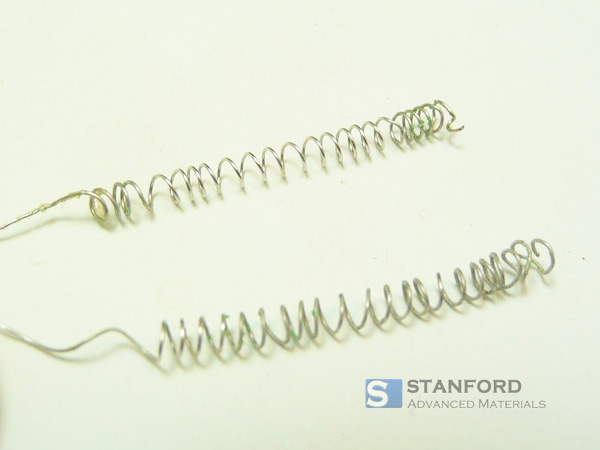

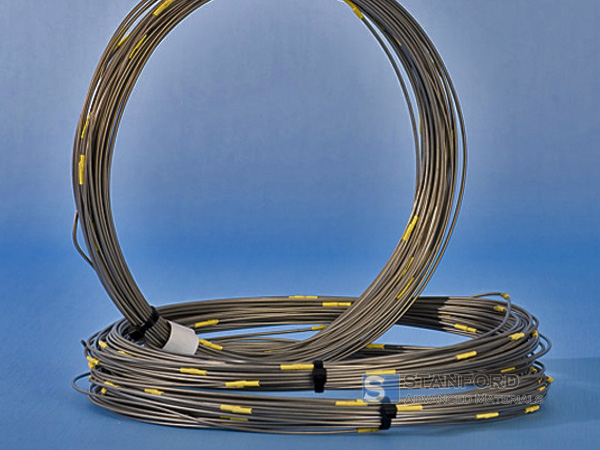

-Platinum-Coated Wire

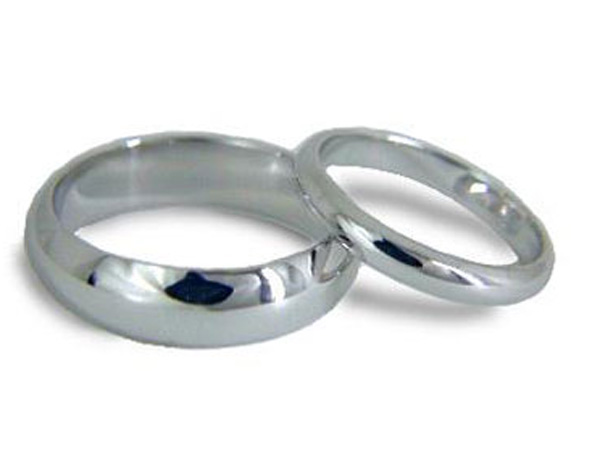

-Jewellery Manufacturing
Related Articles:
Why Platinum is the Most Expensive Metal
Platinum – Malleability
How to Maintain a Platinum Crucible
Frequently Asked Questions (FAQs)
1. Which pure forms of Platinum Wire do you offer and how do I select the appropriate one for my application?
We offer Platinum Wire with purities of 99.99% and 99.95%. The selection depends on the specific requirements of your application. Higher purities are suitable for applications that require maximum corrosion resistance and electrical conductivity, for example in electronics and medicine.
2. Do you supply custom dimensions and shapes of Platinum Wire?
Yes, we provide tailored solutions according to the specific requirements of our clients. Wire diameters range from 0.10 mm to 4.0 mm and shapes are available as round, semi-round or square. Please contact our sales team to discuss your exact specifications.
3. Which Platinum alloys do you offer and what are their applications?
We offer various platinum alloys, including platinum-iridium alloys (5%, 10%, 20% iridium), platinum-gold alloys and platinum-rhodium thermocouple wire. These alloys are used in high-temperature applications, sensors, thermocouples and industrial processes requiring increased strength and temperature resistance.
4. How is the Platinum Wire packaged and delivered to ensure its quality?
The Platinum Wire is carefully packaged to avoid damage during transport. Packaging follows customer requirements in the form of coils or rolls that are clearly labelled for easy identification. We ensure that all products meet strict quality standards.
5. How soon can I expect delivery of Platinum Wire after placing an order?
Delivery times vary according to product availability and the specific requirements of your order. In general, orders are processed promptly and flexible delivery options are available. For detailed information regarding your order, please contact our sales team, who will provide a precise delivery time.
6. Is Platinum Wire biocompatible and suitable for use in medical implants?
Yes, due to its chemical stability and resistance to corrosion and oxidation, Platinum Wire is biocompatible and suitable for use in medical implants such as pacemakers and other devices.
7. How does Platinum-Rhodium Thermocouple Wire differ from other thermocouple wires?
Platinum-Rhodium Thermocouple Wire maintains higher temperature resistance and stability compared with other thermocouple wires. It is used in applications that require accurate and reliable performance under extreme temperatures, for instance in aerospace or semiconductor manufacturing.
8. What quality controls are conducted during the manufacture of Platinum Wire?
We conduct rigorous quality controls throughout the manufacturing process. These include material testing, diameter measurement, purity analysis and mechanical tests. This approach ensures that all Platinum Wire meets strict industry standards and the specific requirements of our clients.
