Name: BE2042 Beryllium Copper Strip, BeCu
Brand: Stanford Advanced Materials (SAM)
SKU: BE2042
Availability: InStock

Home

Products

Non-ferrous Metal

Beryllium

BE2042 Beryllium Copper Strip, BeCu

Catalogue Number	BE2042
Material	Beryllium Copper
Composition	Be: 1.7-1.9%
Tensile Strength	60-220 ksi
Yield Strength	28-205 ksi
Standard	ASTM B194

Stanford Advanced Materials has supplied copper and copper alloy products for over 20 years. It provides beryllium copper in the forms of sheets, strips, films and other formats.

INQUIRY

Add to Compare

Description

Specification

Reviews

Description of Beryllium Copper Strips

Beryllium copper (BeCu), also known as copper–beryllium or beryllium bronze, is among the highest strength copper alloys available on the market. The industrial grade beryllium copper comprises 0.2–0.4% beryllium. The alloys are non-magnetic and do not produce sparks. They are used in a range of applications. In addition, copper–beryllium performs well in most metalworking and joining processes, thereby permitting the economical production of specific configurations.

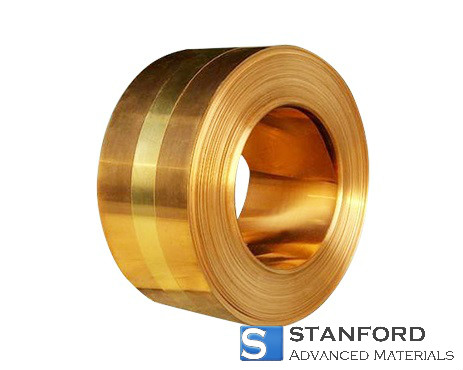

copper-beryllium-strip

Specifications of Beryllium Copper Strips

Mechanical and Electrical Properties of Copper–Beryllium Strips

Alloy	Condition	Tensile Strength (ksi)	0.2% Offset Yield Strength (ksi)	Elongation (in percent) (Note 3)	Fatigue Strength (ksi)	HARDNESS			Electrical Conductivity (% IACS)
						Diamond Pyramid	Rockwell
						Diamond Pyramid	B or C	Surface
25 C17200	A Full Annealed (TB00)	60–76	28–36	35–65	30–35	90–144	B45–78	30T46–67	15–19
	A Planished (TB00)	60–78	30–55	35–60	30–35	90–144	B45–78	30T46–67	15–19
	1/4 Hard (TD01)	75–88	60–80	20–45	31–36	121–185	B68–90	30T62–75	15–19
	1/2 Hard (TD02)	85–100	75–95	12–30	32–38	176–216	B88–96	30T74–79	15–19
	Hard (TD04)	100–120	90–115	2–18	35–39	216–287	B96–102	30T79–83	15–19
	AT (TF 00)	165–195	140–175	3–15	40–45	353–413	C36–42	30N56–62	22–28
	1/4 Heat Treated (TH01)	175–205	150–185	3–10	40–45	353–424	C36–43	30N56–63	22–28
	1/2 Heat Treated (TH02)	185–215	160–195	1–8	42–47	373–435	C38–44	30N58–63	22–28
	Heat Treated (TH04)	190–220	165–205	1–6	45–50	373–446	C38–45	30N58–65	22–28
190 C17200	AM (TM00)	100–110	70–95	16–30	40–45	210–251	B95–C23	30N37–44	17–28
	1/4 HM (TM01)	110–120	80–110	15–25	41–47	231–271	C20–26	30N41–47	17–28
	1/2 HMI (TM02)	120–135	95–125	12–22	42–48	250–301	C23–30	30N44–51	17–28
	HM (TM04)	135–150	110–135	9–20	45–52	285–343	C28–35	30N48–55	17–28
	SHM (TM05)	150–160	125–140	9–18	47–55	309–363	C31–37	30N52–56	17–28
	XHM (TM06)	155–175	135–170	4–15	50–57	317–378	C32–38	30N52–58	17–28
	XHMS (TM08)	175–190	150–180	3–12	50–60	325–413	C33–42	30N53–62	17–28
174 C17410	3/4 Heat Treated (TH02)	95–115	80–100	10–20	40–45	180–230	B89–98	30T175–82	50 min
174 C17410	Heat Treated (TH04)	110–130	100–120	7–17	40–45	210–278	B95–102	30T79–30N48	45–60
3 C17510	AT (TF 00)	100–130	80–100	10–25	38–44	195–275	B92–100	30177–82	45–60
3 C17510	Heat Treated (TH04)	110–135	95–120	8–20	42–47	216–287	B95–102	30179–83	48–60
174 C17410	Heat Treated	135–153	138–158	1 min.	35–140	-	-	-	44 min.
174 C17410	Heat Treated (TH04)	110–130	100–120	7–17	40–45	210–278	B95–102	30T79–30N48	45–60
3 C17510 ml	AT (TF 00)	100–130	80–100	10–25	38–44	195–275	B92–100	30177–82	45–60
3 C17510 ml	Heat Treated (TH04)	110–135	95–120	8–20	42–47	216–287	B95–102	30179–83	48–60
Alloy 390 C017460	Heat Treated	135–153	138–158	1 min.	35–140	-	-	-	44 min.

Applications of Beryllium Copper Strip

- Plastic moulds and tools
- Electrical springs and connectors
- Components for oil and gas systems
- Components for automotive drivetrain
- Underwater and marine telecommunications components

Packaging of Beryllium Copper Strips

Our beryllium copper strips are marked and externally labelled to enable identification and quality control. Measures are in place to prevent damage during storage and transport.

Specification

Alloy	Temper	Tensile Strength (ksi)	Yield Strength 0.2% offset (ksi)	Elongation Percent (note 3)	Fatigue - Strength (ksi)	HARDNESS			Electrical Conductivity (% IACS)
						Diamond Pyramid	Rockwell
						Diamond Pyramid	B or C	Superficial
25 C17200	A Dead Soft (TB00)	60-76	28-36	35-65	30-35	90-144	B45-78	30T46-67	15-19
	A Plan ished (TB00)	60-78	30-55	35-60	30-35	90-144	B45-78	30T46-67	15-19
	1/4 H (TD01)	75-88	60-80	20-45	31-36	121-1 85	B68-90	30T62-75	15-19
	1/2 H (TD02)	85-100	75-95	12-30	32-38	176-216	B88-96	30174-79	15-19
	H (TD04)	100-120	90-115	2-18	35-39	216-287	B96-102	30179-83	15-19
	AT (TF 00)	165-195	140-175	3-15	40-45	353-413	C36-42	30N56-62	22-28
	1/4 HT (TH01)	175-205	150-185	3-10	40-45	353-424	C36-43	30N56-63	22-28
	1/2 HT (TH02)	185-215	160-195	1-8	42-47	373-435	C38-44	30N58-63	22-28
	HT (TH04)	190-220	165-205	1-6	45-50	373-446	C38-45	30N58-65	22-28
190 C17200	AM (TM00)	100-110	70-95	16-30	40-45	210-251	B95-C23	30N37-44	17-28
	1/4 HM (TM01)	110-120	80-110	15-25	41-47	2311271	C20-26	30N41-47	17-28
	1/2 HMIIMO2)	120-135	95-125	12-22	42-48	250-301	C23-30	30N44-51	17-28
	HM (TM04)	135-150	110-135	9-20	45-52	285-343	C28-35	30N48-55	17-28
	SHM (TM05)	150-160	125-140	9-18	47-55	309-363	C31-37	30N52-56	17-28
	XHM (TM06)	155-175	135-170	4-15	50-57	317-378	C32-38	30N52-58	17-28
	XHMS (TM08)	175-190	150-180	3-12	50-60	325-413	C33-42	30N53-62	17-28
174 C17410	3/4HT (TH02)	95-115	80-100	10-20	40-45	180-230	B89-98	30175-82	50 min
174 C17410	HT (TH04)	110-130	100-120	7-17	40-45	210-278	B95-102	30T79-30N48	45-60
3 C17510	AT (TF 00)	100-130	80-100	10-25	38-44	195-275	B92-100	30177-82	45-60
3 C17510	HT (TH04)	110-135	95-120	8-20	42-47	216-287	B95-102	30179-83	48-60
174 C17410	HT	135-153	138-158	1 min.	35-140	-	-	-	44 min.
174 C17410	HT (TH04)	110-130	100-120	7-17	40-45	210-278	B95-102	30T79-30N48	45-60
3 C17510 ml	AT (TF 00)	100-130	80-100	10-25	38-44	195-275	B92-100	30177-82	45-60
3 C17510 ml	HT (TH04)	110-135	95-120	8-20	42-47	216-287	B95-102	30179-83	48-60
Alloy 390 C017460	HT	135-153	138-158	1 min.	35-140	-	-	-	44 min.
