Name: BE2044 Beryllium copper wire, BeCu
Brand: Stanford Advanced Materials (SAM)
SKU: BE2044
Availability: InStock

Home

Products

Non-ferrous Metal

Beryllium

BE2044 Beryllium copper wire, BeCu

Catalogue Number	BE2044
Material	Beryllium Copper
Composition	Be: 1.8-2.0%
Tensile Strength	60-220 ksi
Yield Strength	28-205 ksi
Standard	B197

Stanford Advanced Materials has operated for over 20 years in the supply of copper and copper alloy products internationally. The company provides beryllium copper in forms such as sheets, strips and foils, among others.

INQUIRY

Add to enquiry list

Description

Specification

Video

Description of Beryllium Copper Wire

Beryllium copper (BeCu), also known as copper–beryllium and beryllium bronze, is one of the highest strength copper alloys available on the market. The industrial grade contains 0.4–0.2% beryllium. The alloys are non‑magnetic and non‑sparking. Therefore, they are suitable materials for many applications. Given that copper–beryllium performs well in most metal processing and joining methods, specialised configurations can be produced economically.

Beryllium copper wire, which exhibits good electrical conductivity, thermal conductivity, corrosion resistance and processability, can be welded and soldered.

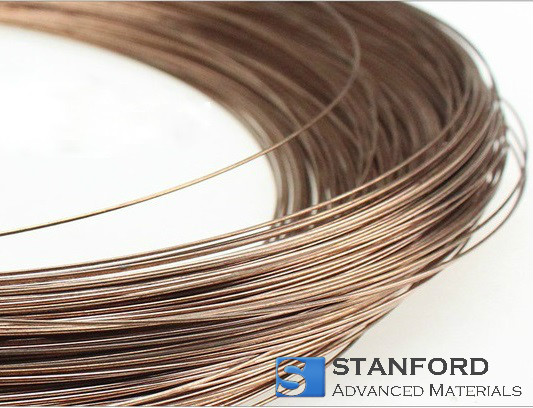

beryllium-copper-wire

Specifications of Beryllium Copper Wire

Mechanical and Electrical Properties of Copper–Beryllium Wire

Legierung	Zustand	Zugfestigkeit (ksi)	Streckgrenze 0,2% Offset (ksi)	Dehnung in Prozent (Anmerkung 3)	Ermüdung - Festigkeit (ksi)	HÄRTE			Elektrische Leitfähigkeit (% IACS)
						Diamant Pyramide	Rockwell
						Diamant Pyramide	B oder C	Oberflächlich
25 C17200	A Totweich (TB00)	60-76	28-36	35-65	30-35	90-144	B45-78	30T46-67	15-19
	A Geplant (TB00)	60-78	30-55	35-60	30-35	90-144	B45-78	30T46-67	15-19
	1/4 H (TD01)	75-88	60-80	20-45	31-36	121-185	B68-90	30T62-75	15-19
	1/2 H (TD02)	85-100	75-95	12-30	32-38	176-216	B88-96	30174-79	15-19
	H (TD04)	100-120	90-115	2-18	35-39	216-287	B96-102	30179-83	15-19
	AT (TF 00)	165-195	140-175	3-15	40-45	353-413	C36-42	30N56-62	22-28
	1/4 HT (TH01)	175-205	150-185	3-10	40-45	353-424	C36-43	30N56-63	22-28
	1/2 HT (TH02)	185-215	160-195	1-8	42-47	373-435	C38-44	30N58-63	22-28
	HT (TH04)	190-220	165-205	1-6	45-50	373-446	C38-45	30N58-65	22-28
190 C17200	AM (TM00)	100-110	70-95	16-30	40-45	210-251	B95-C23	30N37-44	17-28
	1/4 HM (TM01)	110-120	80-110	15-25	41-47	2311271	C20-26	30N41-47	17-28
	1/2 HMIIMO2)	120-135	95-125	12-22	42-48	250-301	C23-30	30N44-51	17-28
	HM (TM04)	135-150	110-135	9-20	45-52	285-343	C28-35	30N48-55	17-28
	SHM (TM05)	150-160	125-140	9-18	47-55	309-363	C31-37	30N52-56	17-28
	XHM (TM06)	155-175	135-170	4-15	50-57	317-378	C32-38	30N52-58	17-28
	XHMS (TM08)	175-190	150-180	3-12	50-60	325-413	C33-42	30N53-62	17-28
174 C17410	3/4HT (TH02)	95-115	80-100	10-20	40-45	180-230	B89-98	30175-82	50 min
174 C17410	HT (TH04)	110-130	100-120	7-17	40-45	210-278	B95-102	30T79-30N48	45-60
3 C17510	AT (TF 00)	100-130	80-100	10-25	38-44	195-275	B92-100	30177-82	45-60
3 C17510	HT (TH04)	110-135	95-120	8-20	42-47	216-287	B95-102	30179-83	48-60
174 C17410	HT	135-153	138-158	1 min.	35-140	-	-	-	44 min.
174 C17410	HT (TH04)	110-130	100-120	7-17	40-45	210-278	B95-102	30T79-30N48	45-60
3 C17510	AT (TF 00)	100-130	80-100	10-25	38-44	195-275	B92-100	30177-82	45-60
3 C17510	HT (TH04)	110-135	95-120	8-20	42-47	216-287	B95-102	30179-83	48-60
Legierung 390 C017460	HT	135-153	138-158	1 min.	35-140	-	-	-	44 min.

Bürsten-Legierung	UNS-Nummer	Band
25	C1720	ASTM B 194
		QQ-C-533
		AMS 4530, 4532
		SAE J 461,463
190	C1720	ASTM B 194
290	C1720	ASTM B 194
3	C17510	ASTM B 534
		MIL-C-81021
		RWMA Klasse3
174	C17410	ASTM B 768
Bürste 60	C17460	ASTM B 768

Applications of Beryllium Copper Wire

- Plastic moulds and tools
- Electronic springs and connectors
- Components for oil and gas systems
- Components for automotive drivetrains
- Underwater and marine telecommunication components

Packaging of Beryllium Copper Wire

Our beryllium copper wires are clearly marked and labelled externally to facilitate efficient identification and quality control. Measures are taken to ensure that no damage occurs during storage or transport.

Specification

Alloy	Temper	Tensile Strength (ksi)	Yield Strength 0.2% offset (ksi)	Elongation Percent (note 3)	Fatigue - Strength (ksi)	HARDNESS			Electrical Conductivity(% IACS)
						Diamond Pyramid	Rockwell
						Diamond Pyramid	B or C	Superficial
25 C17200	A Dead Soft (TB00)	60-76	28-36	35-65	30-35	90-144	B45-78	30T46-67	15-19
	A Planished (TB00)	60-78	30-55	35-60	30-35	90-144	B45-78	30T46-67	15-19
	1/4 H (TD01)	75-88	60-80	20-45	31-36	121-1 85	B68-90	30T62-75	15-19
	1/2 H (TD02)	85-100	75-95	12-30	32-38	176-216	B88-96	30174-79	15-19
	H (TD04)	100-120	90-115	2-18	35-39	216-287	B96-102	30179-83	15-19
	AT (TF 00)	165-195	140-175	3-15	40-45	353-413	C36-42	30N56-62	22-28
	1/4 HT (TH01)	175-205	150-185	3-10	40-45	353-424	C36-43	30N56-63	22-28
	1/2 HT (TH02)	185-215	160-195	1-8	42-47	373-435	C38-44	30N58-63	22-28
	HT (TH04)	190-220	165-205	1-6	45-50	373-446	C38-45	30N58-65	22-28
190 C17200	AM (TM00)	100-110	70-95	16-30	40-45	210-251	B95-C23	30N37-44	17-28
	1/4 HM (TM01)	110-120	80-110	15-25	41-47	2311271	C20-26	30N41-47	17-28
	1/2 HMIIMO2)	120-135	95-125	12-22	42-48	250-301	C23-30	30N44-51	17-28
	HM (TM04)	135-150	110-135	9-20	45-52	285-343	C28-35	30N48-55	17-28
	SHM (TM05)	150-160	125-140	9-18	47-55	309-363	C31-37	30N52-56	17-28
	XHM (TM06)	155-175	135-170	4-15	50-57	317-378	C32-38	30N52-58	17-28
	XHMS (TM08)	175-190	150-180	3-12	50-60	325-413	C33-42	30N53-62	17-28
174 C17410	3/4HT (TH02)	95-115	80-100	10-20	40-45	180-230	B89-98	30175-82	50 min
174 C17410	HT (TH04)	110-130	100-120	7-17	40-45	210-278	B95-102	30T79-30N48	45-60
3 C17510	AT (TF 00)	100-130	80-100	10-25	38-44	195-275	B92-100	30177-82	45-60
3 C17510	HT (TH04)	110-135	95-120	8-20	42-47	216-287	B95-102	30179-83	48-60
174 C17410	HT	135-153	138-158	1 min.	35-140	-	-	-	44 min.
174 C17410	HT (TH04)	110-130	100-120	7-17	40-45	210-278	B95-102	30T79-30N48	45-60
3 C17510	AT (TF 00)	100-130	80-100	10-25	38-44	195-275	B92-100	30177-82	45-60
3 C17510	HT (TH04)	110-135	95-120	8-20	42-47	216-287	B95-102	30179-83	48-60
Alloy 390 C017460	HT	135-153	138-158	1 min.	35-140	-	-	-	44 min.
