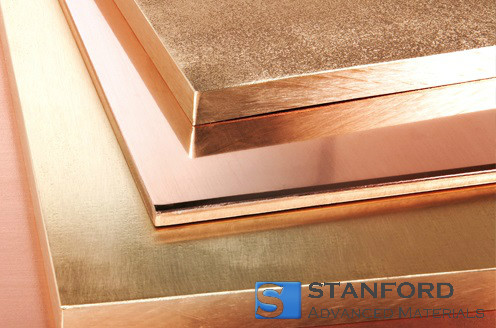

BE2040 Beryllium copper plate/sheet, BeCu

Catalogue Number	BE2040
Material	Beryllium Copper
Composition	Be: 1.7-1.9%
Tensile Strength	60-220 ksi
Yield Strength	28-205 ksi
Standard	ASTM B194

Beryllium copper is a ductile material that may be stamped and formed into complex shapes with tight tolerances. SAM is a manufacturer and supplier of beryllium copper plates and sheets. Customised shapes and defined component ratios are available upon request.

INQUIRY

Description

Specification

LAST RECOMMENDATION

BE2041 Beryllium-Copper Rod/Rod, BeCu

BE2042 Beryllium Copper Strip, BeCu

BE2043 Beryllium copper tube, BeCu

BE2044 Beryllium copper wire, BeCu

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Heat Treatment	Thickness (inches)	Tensile Strength (ksi)	Yield Strength (0.2% Offset, ksi)	Elongation (%)	Hardness (Rockwell B or C scale)	Electrical Conductivity (% IACS)
	all sizes	60–85	33–35	20–60	B45–85	15–19
	up to 3/8	90–130	75–105	8–20	B91–103	15–19
	over 3/8 to 1	90–125	75–105	8–20	B90–102	15–19
	over 1 to 2	85–120	75–105	8–20	B88–102	15–19
	over 2 to 3	85–120	75–105	8–20	B88–102	15–19
3h–625°F	all sizes	165–200	140–175	3–10	C36–41	22–28
2 Std. 625°F	up to 3/8	180–215	160–200	1–5	C39–45	22–28
	over 3/8 to 1	180–233	155–200	1–5	C39–44	22–28
	over 1 to 2	175–215	150–200	2–5	C37–43	22–28
	over 2 to 3	165–200	130–180	2–5	C36–42	22–28
	all sizes	60–85	20–35	20–60	B45–85	15–19
	up to 3/8	90–130	75–105	8–20	B92–103	15–19
	over 3/8 to 1	90–125	75–105	8–20	B91–102	15–19
	over 1 to 2	85–120	75–105	8–20	B88–101	15–19
	over 2 to 3	85–120	75–105	8–20	B88–101	15–19
3h–625°F	All sizes	150–193	133–155	3–10	C33–39	22–28
2h 625°F	up to 3/8	170–210	135–165	2–5	C35–41	22–28
	over 3/8 to 1	170–210	135–165	2–5	C35–41	22–28
	over 1 to 2	165–200	135–165	2–5	C34–39	22–28
	over 2 to 3	160–193	125–165	2–5	C34–38	22–28
	all sizes	35–55	25–45	20–35	B20–45	20–33
	up to 3	70–45	55–40	2–8	B78–89	20–33
3 Std. 900°F	all sizes	100–130	80–100	8–20	B92–100	45–60
2 k9301	up to 3	110–140	100–120	5–15	B95–102	48–60

Heat Treatment	Thickness inch	Tensile Strength ksi	Yield Strength 0.2% offset ksi	Elongation percent	Hardness Rockwell B or C scale	electrical conductivity percent IACS
	all sizes	60-85	33-35	20-60	B45-85	15-19
	up to 3/8	90-130	75-105	8-20	B91-103	15-19
	over 3/8 to 1	90-125	75-105	8-20	B90-102	15-19
	over 1 to 2	85-120	75-105	8-20	B88-102	15-19
	over 2 to 3	85-120	75-105	8-20	B88-102	15-19
3hr-625°F	all sizes	165-200	140-175	3-10	C36-41	22-28
2 hr 625°F	up to 3/8	180-215	160-200	1-5	C39-45	22-28
	over 3/8 to 1	180-233	155-200	1-5	C39-44	22-28
	over 1 to 2	175-215	150-200	2-5	C37-43	22-28
	over 2 to 3	165-200	130-180	2-5	C36-42	22-28
	all sizes	60-85	20-35	20-60	B45-85	15-19
	up to 3/8	90-130	75-105	8-20	B92-103	15-19
	over 3/8 to 1	90-125	75-105	8-20	B91-102	15-19
	over 1 to 2	85-120	75-105	8-20	B88-101	15-19
	over 2 to 3	85-120	75-105	8-20	B88-101	15-19
3hr-625°F	All sizes	150-193	133-155	3-10	C33-39	22-28
2hr 625°F	up to 3/8	170-210	135-165	2-5	C35-41	22-28
	over 3/8 to 1	170-210	135-165	2-5	C35-41	22-28
	over 1 to 2	165-200	135-165	2-5	C34-39	22-28
	over 2 to 3	160-193	125-165	2-5	C34-38	22-28
	all sizes	35-55	25-45	20-35	B20-45	20-33
	up to 3	7045	5540	2-8	B78-89	20-33
3 hr 900°F	all sizes	100-130	80-100	8-20	B92-100	45-60
2 k9301	up to 3	110-140	100-120	5-15	B95-102	48-60
