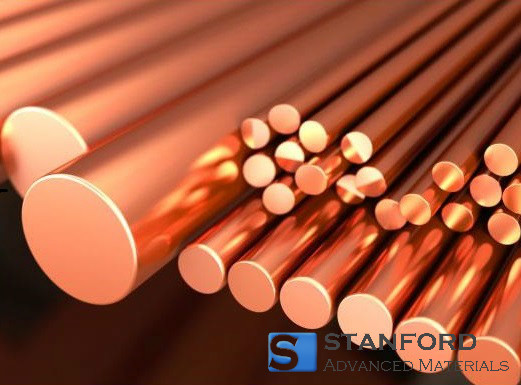

BE2041 Beryllium-Copper Rod/Rod, BeCu

Catalogue Number	BE2041
Material	Beryllium Copper
Composition	Be: 1.7-1.9%
Tensile Strength	60-220 ksi
Yield Strength	28-205 ksi
Standard	ASTM B196

Stanford Advanced Materials (SAM) manufactures and supplies Beryllium copper rods and bars and multiple Beryllium copper shapes. Customised shapes and component ratios are available on request.

INQUIRY

Description

Specification

Video

LAST RECOMMENDATION

BE0940 Beryllium Foil, Be Foil

BE0941 Beryllium flat, Be sheet

BE0943 Beryllium wire, Be-wire

BC0968 Beryllium Oxide Ceramic Heatsink, BeO

BC0969 Beryllium Oxide Ceramic Crucible, BeO

BC0970 Beryllium Oxide Ceramic Substrate, BeO

BE1306 Beryllium Sulphide (BeS) Powder (CAS No. 13598-22-6)

NR1307 Beryllium Nitride Powder, Be3N2 (CAS No. 1304-54-7)

AL1620 aluminium-beryllium alloy

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Alloy	Condition	Heat Treatment	Outer Diameter or Distance between Parallel Surfaces (inches)	Tensile Strength (ksi)	Yield Strength (0.2% offset) (ksi)	Elongation (%)	Hardness (Rockwell Scale B or C)	Electrical Conductivity (Percent IACS)
25 C17200 and M25 C17300	A (TB00)		all sizes	60-85	20-35	20-60	B45-85	15-19
	HT (TH04)		up to 3/8	90-130	75-105	8-30	B88-103	15-19
			over 3/8 up to 1	90-125	75-105	8-30	B88-102	15-19
			over 1 up to 3	85-120	75-105	8-20	B88-101	15-19
	AT (TFOO)	3 hrs. 600°F–625°F	up to 3	165-200	145-175	4-10	C36-42	22-28
	AT (TFOO)	3 hrs. 600°F–625°F	over 3	165-200	130-175	3-10	C36-42	22-28
	HT (TH04)	2-3 hrs. 600°F–625°F	up to 3/8	185-225	160-200	2-9	C39-45	22-28
			over 3/8 up to 1	180-220	155-195	2-9	C38-44	22-28
			over 1 up to 3	175-215	145-190	4-10	C37-44	22-28
165 C17000	A(TB00)		all sizes	60-85	20-35	20-60	B45-85	15-19
	A(TB00)		up to 3/8	90-130	75-105	8-30	B92-103	15-19
	H(TD04)		up to 3/8	90-130	75-105	8-30	B92-103	15-19
			over 3/8 up to 1	90-125	75-105	8-30	B91-102	15-19
			over 1 up to 3	85-120	75-105	8-20	B88-101	15-19
	AT(TF00)	3 hrs. 600°F–625°F	up to 3	150-190	125-155	4-10	C32-39	22-28
	AT(TF00)	3 hrs. 600°F–625°F	over 3	150-190	125-155	3-10	C32-39	22-28
	T(TH04)	2-3 hrs. 600°F–625°F	up to 3/8	170-210	145-185	2-5	C35-41	22-28
			over 3/8 up to 1	170-210	145-185	2-5	C35-41	22-28
			over 1 up to 3	165-200	135-175	4-9	C34-39	22-28
3 C17510 and 10 C17500	A(TB00)		all sizes	35-55	10-30	20-35	B20-50	20-30
	H(TD04)		up to 3	65-80	50-75	10-25	B60-80	20-30
	AT(TF00)	3 hrs. 900°F	all sizes	100-130	80-100	10-25	B92-100	45-60
	HT(TH04)	2 hrs. 900°F	up to 3	110-140	95-125	5-25	B95-102	48-60

Alloy	Temper	Heat	Outside diameter or distance between parallel suefaces inch	Tensile strength ksi	Yield strength 0.2% offset ksi	Elongation percent	Hardness rockwell B or C scale	Electrical conductivity pencent IACS
25 C17200 and M25 C17300	A (TB00)		all sizes	60-85	20-35	20-60	B45-85	15-19
	HT (TH04)		up to 3/8	90-130	75-105	8-30	B88-103	15-19
			over 3/8 to 1	90-125	75-105	8-30	B88-102	15-19
			over 1 to 3	85-120	75-105	8-20	B88-101	15-19
	AT (TFOO)	3 hr 600°F-625°F	up to 3	165-200	145-175	4-10	C36-42	22-28
	AT (TFOO)	3 hr 600°F-625°F	over 3	165-200	130-175	3-10	C36-42	22-28
	HT (TH04)	2-3 hr 600°F-625°F	up to 3/8	185-225	160-200	2-9	C39-45	22-28
			over 3/8 to 1	180-220	155-195	2-9	C38-44	22-28
			over 1 to 3	175-215	145-190	4-10	C37-44	22-28
165 C17000	A(TB00)		all sizes	60-85	20-35	20-60	B45-85	15-19
	A(TB00)		up to 3/8	90-130	75-105	8-30	B92-103	15-19
	H(TD04)		up to 3/8	90-130	75-105	8-30	B92-103	15-19
			over 3/8 to 1	90-125	75-105	8-30	B91-102	15-19
			over 1 to 3	85-120	75-105	8-20	B88-101	15-19
	AT(TF00)	3 hr 600°F 625°F	up to 3	150-190	125-155	4-10	C32-39	22-28
	AT(TF00)	3 hr 600°F 625°F	over 3	150-190	125-155	3-10	C32-39	22-28
	T(TH04)	2-3 hr 600°F-625°F	up to 3/8	170-210	145-185	2-5	C35-41	22-28
			over 3/8 to 1	170-210	145-185	2-5	C35-41	22-28
			over 1 to 3	165-200	135-175	4-9	C34-39	22-28
3 C17510 and 10 C17500	A(TB00)		all sizes	35-55	10-30	20-35	B20-50	20-30
	H(TD04)		up to 3	65-80	50-75	10-25	B60-80	20-30
	AT(TF00)	3 hr 900°F	all sizes	100-130	80-100	10-25	B92-100	45-60
	HT(TH04)	2 hr 900°F	up to 3	110-140	95-125	5-25	B95-102	48-60
