Description of Amorphous Block Cores
Amorphous block cores are fabricated from a 0.025 mm thick amorphous strip that is stacked and engineered for high performance. Their installation is straightforward, and they can be easily wound with copper wire. The laminations are bonded with an adhesive rated for a continuous operating temperature of 155°C. Amorphous block cores exhibit a high saturation flux density and a low core loss. The amorphous core is suitable for solar inverter filters, medium frequency transformers, output chokes and PFC coils. The dimensions may be manufactured in accordance with the customer’s drawing.
Specifications for Amorphous Block Cores
Typical Band Thickness (µm)
|
25
|
Density (g/cm³)
|
7.18
|
Coefficient of Thermal Expansion (ppm/°C)
|
7.6
|
Crystallisation Temperature (°C)
|
550
|
Saturation Induction (T)
|
1.56
|
Electrical Specific Resistance (µΩ-cm)
|
130
|
Curie Temperature (°C)
|
140
|
Continuous Operating Temperature (°C)
|
155
|

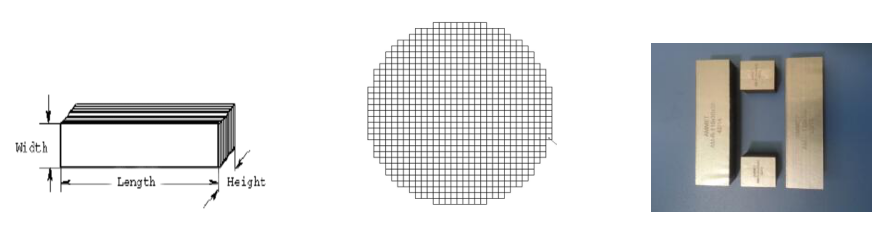

Typ-a
|
Length (+/-0.5)
|
Width (+/-0.3)
|
Height (+/-0.2)
|
Weight (g)
|
Typ-b
|
Length (+/-0.5)
|
Width (+/-0.3)
|
1
|
90
|
25
|
55
|
790
|
1
|
25
|
25
|
2
|
100
|
30
|
85
|
1 640
|
2
|
30
|
30
|
3
|
106
|
35
|
85
|
2 030
|
3
|
35
|
35
|
4
|
110
|
30
|
30
|
635
|
4
|
30
|
30
|
5
|
120
|
40
|
40
|
1 240
|
5
|
30
|
40
|
6
|
135
|
45
|
45
|
1 760
|
6
|
35
|
45
|
7
|
140
|
35
|
36
|
1 138
|
7
|
30
|
35
|
8
|
150
|
50
|
50
|
2 420
|
8
|
30
|
50
|
9
|
155
|
45
|
40
|
1 800
|
9
|
35
|
45
|
Applications for Amorphous Block Cores
Amorphous block cores can be used as:
- Filters for solar inverters
- PFC chokes
- Medium frequency transformers
- Differential mode chokes
- Output filters
- Audio devices
- Medium frequency and high-performance inverters
