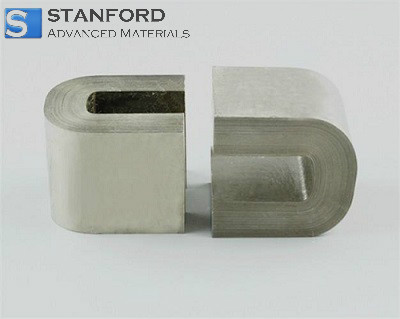

FE2399 Amorphous C-cores

Catalogue Number	FE2399
Material	Fe-based amorphous core
Curie Temperature	410 °C

SAM supplies amorphous C-Cores that conform to established technical specifications. They are produced in various sizes and dimensions, thereby supporting efficient production at your facility. We maintain delivery lead times that meet customer specifications, and we provide tailor-made solutions corresponding to defined requirements.

INQUIRY

Description

Specification

LAST RECOMMENDATION

WM0125 Tungsten-Nickel-Iron Alloy (W-Ni-Fe Alloy)

FE0252 Micro Iron Powder (Fe) (CAS No. 7439-89-6)

NN0281 Nano Iron(II,III) Oxide (Fe3O4) (CAS No. 1317-61-9)

VD0556 Iron (Fe) evaporation materials

VD0613 Cobalt-Iron (Co/Fe) Evaporation Materials

VD0626 Iron-Aluminium (Fe/Al) Evaporation Materials

VD0627 Iron-Chromium (Fe/Cr) Evaporation Materials

VD0628 Iron-Manganese (Fe/Mn) vapourisation materials

VD0629 Iron-Nickel (Fe/Ni) Evaporation Materials

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Saturation Flux Density	1.56 T	Hardness (Hv)	960 kg/mm²
Curie Temperature	410 °C	Density	7.18 g/cm³
Crystallisation Temperature	550 °C	Resistivity	130 µΩ-cm

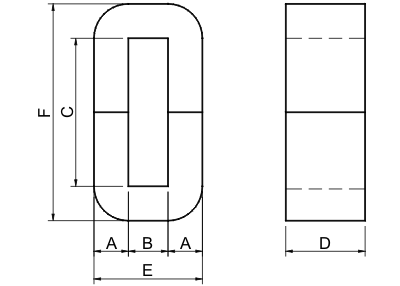

Part No.	Core Dimensions						Mean	Effective	Weight
							Path	Cross
							Length	Section
	A	B	C	D	E	F	lFe	AFe	mFe
	mm	mm	mm	mm	mm	mm	cm	cm²	g
SAMAC-20	11	13	50	30	35	72	15.7	2.94	331
SAMAC-32	13	15	56	30	41	82	17.9	3.47	447
SAMAC-40	13	15	56	35	41	82	17.9	4.05	522
SAMAC-50	16	20	70	25	52	102	22.7	3.56	580
SAMAC-63	16	20	70	30	52	102	22.7	4.27	696
SAMAC-80	16	20	70	40	52	102	22.7	5.7	928
SAMAC-100	16	20	70	45	52	102	22.7	6.41	1 043
SAMAC-125	19	25	83	35	63	121	27.2	5.92	1 157
SAMAC-160	19	25	83	40	63	121	27.2	6.76	1 322
SAMAC-200	19	25	83	50	63	121	27.2	8.46	1 653
SAMAC-250	19	25	90	60	63	128	28.6	10.15	2 085
SAMAC-320	22	35	85	50	79	129	30.6	9.79	2 148
SAMAC-400	22	35	85	65	79	129	30.6	12.73	2 793
SAMAC-500	25	40	85	55	90	135	32.5	12.24	2 856
SAMAC-630	25	40	85	70	90	135	32.5	15.58	3 635
SAMAC-800A	25	40	85	85	90	135	32.5	18.91	4 414
SAMAC-800B	30	40	95	85	100	155	36.1	22.7	5 879
SAMAC-1000	33	40	105	85	106	171	39	24.96	6 994

Saturation Flux Density	1.56T	Hardness Hv	960kg/mm2
Curie Temperature	410°C	Density	7.18g/cm3
Crystallization Temperature	550°C	Resistance	130μΩ-cm
