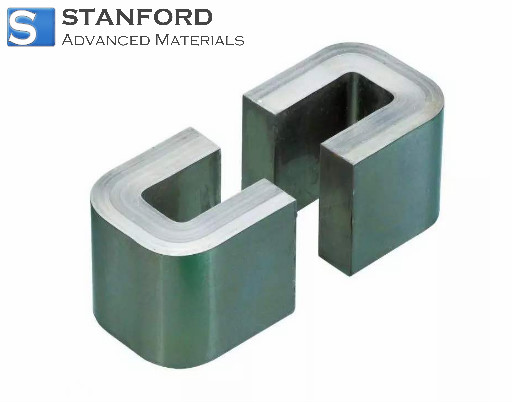

FE2401 Nanocrystalline C-cores

Catalogue Number	FE2401
Material	Fe-based nanocrystalline
Saturation Induction	1.25T
Curie Temperature	560 °C

SAM supplies nanocrystalline C-cores in a range of sizes and dimensions. These cores support efficient production at your facility. SAM delivers the items within measured lead times. Customer requirements determine the provided solutions.

INQUIRY

Description

Specification

LAST RECOMMENDATION

WM0125 Tungsten-Nickel-Iron Alloy (W-Ni-Fe Alloy)

FE0252 Micro Iron Powder (Fe) (CAS No. 7439-89-6)

NN0281 Nano Iron(II,III) Oxide (Fe3O4) (CAS No. 1317-61-9)

VD0556 Iron (Fe) evaporation materials

VD0613 Cobalt-Iron (Co/Fe) Evaporation Materials

VD0626 Iron-Aluminium (Fe/Al) Evaporation Materials

VD0627 Iron-Chromium (Fe/Cr) Evaporation Materials

VD0628 Iron-Manganese (Fe/Mn) vapourisation materials

VD0629 Iron-Nickel (Fe/Ni) Evaporation Materials

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

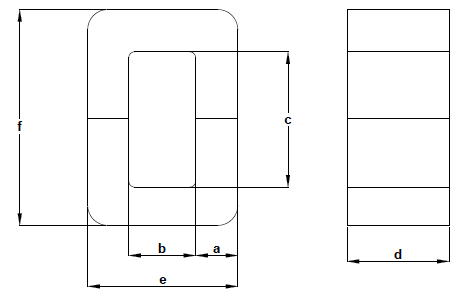

Part No.	Dimensions (mm)						Cross-sectional Area (^cm²)	Length (cm)	Mass (g)
	Dimensions (mm)
	a	b	c	d	e	f	(^cm2)	(cm)	(g)
SAM-NC-6.3	10+1	11	33	20+1	31+1	53+2	1.6	13.1	147
SAM-NC-8	11+1	13	30	20+1	35+1	52+2	1.8	13.2	165
SAM-NC-10	11+1	13	40	20+1	35+1	62+2	1.8	15.4	190
SAM-NC-16SA	11+1	13	40	25+1	35+1	62+2	2.3	15.1	240
SAM-NC-16B	11+1	13	50	25+1	35+1	72+2	2.3	16.9	270
SAM-NC-20	11+1	13	50	30+1	35+1	72+2	2.7	17.5	320
SAM-NC-25	13+1	15	56	25+1	41+1	82+2	2.7	19.6	360
SAM-NC-32	13+1	15	56	30+1	41+1	82+2	3.2	20	435
SAM-NC-50	16+1	20	70	25+1	52+1	102+3	3.3	24.9	565
SAM-NC-63	16+1	20	70	30+1	52+1	102+3	3.9	25.3	688

Part No.	Dimensions (mm)						Cross-sectional Area (^cm²)	Length (cm)
	Dimensions (mm)
	a	b	c	d	e	f	(^cm2)	(cm)
SAM-NC-56	8+0.5	40.5	40.5	8+0.5	56+1	56+1	0.5	19.4
SAM-NC-66	12+0.5	25	42	12+0.5	50+1	66+2	1.3	18.4
SAM-NC-70	10+0.5	17	51	12+0.5	37+1	70+2	1.02	17.6
SAM-NC-75	12+0.5	50	52	12+0.5	75+1	75+2	1.3	25.4
SAM-NC-82	12+0.5	18	29	12+0.5	42	82+1	1.2.	14.2
SAM-NC-85	15+0.5	23.2	55.5	15+0.5	53+1	85+1	1.8	21.7
SAM-NC-100	20+0.5	60	61	20+1	100+1	100+2	3.2	32.2
SAM-NC-119	12+0.5	65.5	95	15+0.5	89+1	119+2	1.4	36.9
SAM-NC-120	20+1	32.5	80	20+1	72+1	120+2	3.2	30.5
SAM-NC-130	20+1	60.5	90	20+1	100+2	130+2	3.2	38.1
SAM-NC-150SA	25+1	55.5	100	25+1	105+2	150+2	5	41.1
SAM-NC-150B	25+1	78.5	100	25+1	128+2	150+2	5	45.7
SAM-NC-150C	25+1	78.5	100	30+1	128+2	150+2	6	45.7
SAM-NC-150D	20+1	45	111	20+1	85+1	150+2	3.2	39.2
SAM-NC-150E	25+1	62	101	25+1	112+1	150+2	5	42.6
SAM-NC-150F	25.8+0.5	66	99	25+1	118+1	150+2	5.4	43.3
SAM-NC-170	25+1	45	122	25+1	95+1	170+3	5	43.4
SAM-NC-188	24+0.5	89	141	25+0.5	137+1	188+3/-1	4.8	55.6
SAM-NC-190SA	25+1	40.5	141	30+1	90+2	190+3/-1	6	46.1
SAM-NC-190B	25+1	76	141	30+1	126+2	190+3/-1	6	53.4
SAM-NC-190C	25+1	89	141	25+1	139+1	190+3/-1	5	56
SAM-NC-204	32+1	76	141	25+1	140+1	204+3/-1	6.4	56.2
SAM-NC-280	45+1	40.5	191	30+1/-0.5	130+1	280+3/-1	11.4	64.3
SAM-NC-320	55+1	40.5	211	30+1/-0.5	150+2	320+4/-2	13.9	72.3

Part No.	Dimension (mm)						Cross Section	Length	Mass
	Dimension (mm)
	a	b	c	d	e	f	(cm²)	(cm)	(g)
SAM-NC-6.3	10+1	11	33	20+1	31+1	53+2	1.6	13.1	147
SAM-NC-8	11+1	13	30	20+1	35+1	52+2	1.8	13.2	165
SAM-NC-10	11+1	13	40	20+1	35+1	62+2	1.8	15.4	190
SAM-NC-16SA	11+1	13	40	25+1	35+1	62+2	2.3	15.1	240
SAM-NC-16B	11+1	13	50	25+1	35+1	72+2	2.3	16.9	270
SAM-NC-20	11+1	13	50	30+1	35+1	72+2	2.7	17.5	320
SAM-NC-25	13+1	15	56	25+1	41+1	82+2	2.7	19.6	360
SAM-NC-32	13+1	15	56	30+1	41+1	82+2	3.2	20	435
SAM-NC-50	16+1	20	70	25+1	52+1	102+3	3.3	24.9	565
SAM-NC-63	16+1	20	70	30+1	52+1	102+3	3.9	25.3	688
