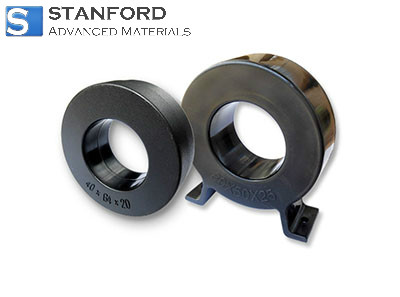

FE2402 Nanocrystalline Cores for Transformers

Catalogue Number	FE2402
Material	Fe-based nanocrystalline core
Saturation Induction	1.25T
Permeability	> 20000
Resistivity	90μΩ.cm

SAM supplies nanocrystalline cores for transformers in various sizes and dimensions. These cores support production efficiency at your site. We process orders within 3 business days. Deliveries are scheduled within 7 business days. We provide customised solutions in accordance with precise customer specifications.

INQUIRY

Description

Specification

LAST RECOMMENDATION

WM0125 Tungsten-Nickel-Iron Alloy (W-Ni-Fe Alloy)

FE0252 Micro Iron Powder (Fe) (CAS No. 7439-89-6)

NN0281 Nano Iron(II,III) Oxide (Fe3O4) (CAS No. 1317-61-9)

VD0556 Iron (Fe) evaporation materials

VD0613 Cobalt-Iron (Co/Fe) Evaporation Materials

VD0626 Iron-Aluminium (Fe/Al) Evaporation Materials

VD0627 Iron-Chromium (Fe/Cr) Evaporation Materials

VD0628 Iron-Manganese (Fe/Mn) vapourisation materials

VD0629 Iron-Nickel (Fe/Ni) Evaporation Materials

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

Please enclose drawings:

Save files here or

Accepted file formats: PDF, PNG, JPG, JPEG; if uploading multiple files at once, each file must be smaller than 2 MB.

* Check Code

Saturation Flux Density (Induction)	1.25T
Permeability @ 10 kHz	> 20 000
Stacking Factor	0.78
Specific Resistivity	90μΩ.cm
Curie Temperature	560 °C
Core Forms	Toroidal Core

Part No.	Core Dimensions			Housing Dimensions			Effective	Mean	Weight	Power @20 kHz
							Transverse	Path
							Section	Length
	OD	ID	H	OD	ID	H	cm²	cm	g	kW
SAM503220T	50	32	20	53.8	28.5	24	1.4	12.9	131	0.5-1
SAM644020T	64	40	20	68.2	37	23.5	1.87	16.3	222	1-3
SAM805025T	80	50	25	83.5	47.2	28.8	2.93	20.4	433	3-5
SAM805025S	80	50	25	83.5	47.2	28.8	2.93	20.4	433	3-5
SAM1006020T	100	60	20	106	55	25	3.12	25.1	568	5-7
SAM1006020S	100	60	20	106	55	25	3.12	25.1	568	5-7
SAM1207020T	120	70	20	125	65	25	3.9	29.8	843	7-10
SAM1207020S	120	70	20	125	65	25	3.9	29.8	843	7-10
SAM1207030T	120	70	30	125	65	36	5.85	2.98	1265	10-15
SAM1207030S	120	70	30	125	65	36	5.85	2.98	1265	10-15
SAM1308040T	130	80	40	136	75	46	7.8	33	1864	15-20
SAM1308040S	130	80	40	136	75	46	7.8	33	1864	15-20
SAM1308050T	130	80	50	136	75	56	9.75	33	2331	20-25
SAM1308050S	130	80	50	136	75	56	9.75	33	2331	20-25

Saturation Flux Density Induction	1.25T
Permeability @ 10KHz	> 20000
Stacking Factor	0.78
Resistivity	90μΩ.cm
Curie Temperature	560 °C
Core Shapes	Toroidal core
