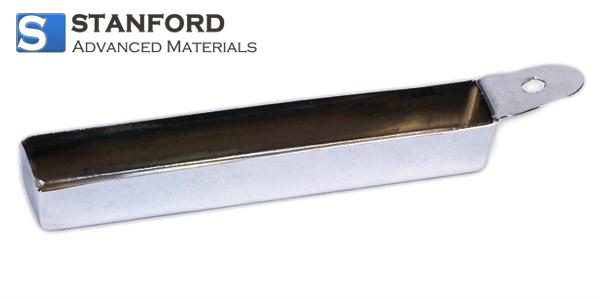

PTU1667 Platinum (Pt) Combustion Boats

Catalogue Number	PTU1667
Dimensions	Customized
Material	Platinum (Pt), Gold (Au), PtAu5 (95% Pt and 5% Au)
Purity	Pt ≥ 99.95%, Au ≥ 99.99%, Ir ≥ 99.99%, Rh ≥ 99.99%

SAM is a manufacturer of platinum products operating internationally. The company supplies platinum melting boats and related products. This product range comprises platinum crucibles and moulds, platinum tongs, platinum evaporating dishes and additional items.

INQUIRY

Description

Specification

Reviews

LAST RECOMMENDATION

PTU0413 Volatile Substances Platinum Crucible

PTU0409 Standard-Platinum Crucible (Standard-Pt Crucible)

Platinum Crucible & Mold (Replacements for Claisse®)

PTU0411 Platinum (Pt) Crucible & Mold (Replacements for Claisse®)

PTU0412 Low and Wide Base Platinum (Pt) Crucible

PTU0414 Platinum (Pt) Crucible & Mold (Replacements for Perl-X®)

PTU0415 Platinum (Pt) Crucible & Mold (Replacements for Vulcan)

Platinum Crucible & Mold (Replacements for Phoenix)

PTU0435 Platinum (Pt) Crucible & Mold (Replacements for Phoenix)

PTU0440 Platinum (Pt) Crucible & Mold (Replacements for Katanax®)

PT0448 Platinum Evaporation Dish (Pt-Evaporation Dish)

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Please enclose drawings:

Save files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Product Name	Upper	Lower	Height	Thickness
Platinum Combustion Boat	Upper side 12mm x 6mm	Lower side 11mm x 4mm	Height 4mm	Base thickness 0.15 mm	Capacity ≈ 0.20 mL
Platinum Combustion Boat	Upper length 100mm	Width 12mm	Height 10mm	Base thickness 0.20 mm	Capacity ≈ 11 mL
Platinum Combustion Boat	Upper length 10mm	Width 4mm	Height 3mm	Base thickness 0.15 mm	Capacity ≈ 0.10 mL
Platinum Combustion Boat	Upper length 120mm	Width 14mm	Height 10mm	Base thickness 0.20 mm	Capacity ≈ 15 mL
Platinum Combustion Boat	Upper length 140mm	Width 12mm	Height 12mm	Base thickness 0.20 mm	Capacity ≈ 17.5 mL
Platinum Combustion Boat	Upper length 15mm	Width 6mm	Height 4mm	Base thickness 0.15 mm	Capacity ≈ 0.15 mL
Platinum Combustion Boat	Upper length 160mm	Width 12mm	Height 14mm	Base thickness 0.20 mm	Capacity ≈ 24 mL
Platinum Combustion Vessel	Upper length 180mm	Width 14mm	Height 16mm	Base thickness 0.20 mm	Capacity ≈ 36 mL
Platinum Combustion Boat	Upper length 200mm	Width 16mm	Height 18mm	Base thickness 0.20 mm	Capacity ≈ 52.5 mL
Platinum Combustion Boat	Upper length 20mm	Width 7mm	Height 4mm	Base thickness 0.15 mm	Capacity ≈ 0.50 mL
Platinum Combustion Boat	Upper length 25mm	Width 5mm	Height 4mm	Base thickness 0.15 mm	Capacity ≈ 0.45 mL
Platinum Combustion Boat	Upper length 30mm	Width 5mm	Height 4mm	Base thickness 0.15 mm	Capacity ≈ 0.50 mL
Platinum Combustion Boat	Upper length 35mm	Width 12mm	Height 10mm	Base thickness 0.15 mm	Capacity ≈ 3.75 mL
Platinum Combustion Boat	Upper length 40mm	Width 12mm	Height 5mm	Base thickness 0.15 mm	Capacity ≈ 2.15 mL
Platinum Combustion Boat	Upper length 50mm	Width 12mm	Height 10mm	Base thickness 0.15 mm	Capacity ≈ 5.40 mL
Platinum Combustion Boat	Upper length 60mm	Width 12mm	Height 10mm	Base thickness 0.15 mm	Capacity ≈ 6.50 mL
Platinum Combustion Boat	Upper length 70mm	Width 9mm	Height 8mm	Base thickness 0.20 mm	Capacity ≈ 4.5 mL
Platinum Combustion Boat	Upper length 80mm	Width 10mm	Height 8mm	Base thickness 0.20 mm	Capacity ≈ 6.0 mL
Platinum Combustion Boat with Handle	Length 110mm	Width 13mm	Height 10mm		Capacity 12 mL
Platinum Combustion Boat with Handle	Length 48mm	Width 13mm	Height 10mm		Capacity 4 mL
Platinum Combustion Boat with Handle	Length 60mm	Width 13mm	Height 10mm		Capacity 6 mL
Platinum Combustion Boat with Handle	Length 60mm	Width 9mm	Height 9mm		Capacity 3 mL
Platinum Combustion Boat with Handle	Length 85mm	Width 13mm	Height 10mm		Capacity 9 mL
Platinum Combustion Boat without Handle	Length 100mm	Width 16mm	Height 13mm		Capacity 12 mL
Platinum Combustion Boat without Handle	Length 60mm	Width 9mm	Height 9mm		Capacity 3 mL

Product Name	Top	Bottom	Height	Thickness
Platinum Combustion Boat	Top 12mm x 6mm	Bottom 11mm x 4mm	Height 4mm	Base Thickness 0.15mm	Capacity ≈ 0.20mL
Platinum Combustion Boat	Top length 100mm	width 12mm	Ht 10mm	Base Thickness 0.20mm	Capacity ≈ 11mL
Platinum Combustion Boat	Top length 10mm	width 4mm	Ht 3mm	Base Thickness 0.15mm	Capacity ≈ 0.10mL
Platinum Combustion Boat	Top length 120mm	width 14mm	Ht 10mm	Base Thickness 0.20mm	Capacity ≈ 15mL
Platinum Combustion Boat	Top length 140mm	width 12mm	Ht 12mm	Base Thickness 0.20mm	Capacity ≈ 17.5mL
Platinum Combustion Boat	Top length 15mm	width 6mm	Ht 4mm	Base Thickness 0.15mm	Capacity ≈ 0.15mL
Platinum Combustion Boat	Top length 160mm	width 12mm	Ht 14mm	Base Thickness 0.20mm	Capacity ≈ 24mL
Platinum combustion boat	Top length 180mm	width 14mm	Ht 16mm	Base Thickness 0.20mm	Capacity ≈ 36mL
Platinum Combustion Boat	Top length 200mm	width 16mm	Ht 18mm	Base Thickness 0.20mm	Capacity ≈ 52.5mL
Platinum Combustion Boat	Top length 20mm	width 7mm	Ht 4mm	Base Thickness 0.15mm	Capacity ≈ 0.50mL
Platinum Combustion Boat	Top length 25mm	width 5mm	Ht 4mm	Base Thickness 0.15mm	Capacity ≈ 0.45mL
Platinum Combustion Boat	Top length 30mm	width 5mm	Ht 4mm	Base Thickness 0.15mm	Capacity ≈ 0.50mL
Platinum Combustion Boat	Top length 35mm	width 12mm	Ht 10mm	Base Thickness 0.15mm	Capacity ≈ 3.75mL
Platinum Combustion Boat	Top length 40mm	width 12mm	Ht 5mm	Base Thickness 0.15mm	Capacity ≈ 2.15mL
Platinum Combustion Boat	Top length 50mm	width 12mm	Ht 10mm	Base Thickness 0.15mm	Capacity ≈ 5.40mL
Platinum Combustion Boat	Top length 60mm	width 12mm	Ht 10mm	Base Thickness 0.15mm	Capacity ≈ 6.50mL
Platinum Combustion Boat	Top length 70mm	width 9mm	Ht 8mm	Base Thickness 0.20mm	Capacity ≈ 4.5mL
Platinum Combustion Boat	Top length 80mm	width 10mm	Ht 8mm	Base Thickness 0.20mm	Capacity ≈ 6.0mL
Platinum Combustion Boat with handle	length 110mm	width 13mm	Ht 10mm		Capacity 12mL
Platinum Combustion Boat with handle	length 48mm	width 13mm	Ht 10mm		Capacity 4mL
Platinum Combustion Boat with handle	length 60mm	width 13mm	Ht 10mm		Capacity 6mL
Platinum Combustion Boat with handle	length 60mm	width 9mm	Ht 9mm		Capacity 3mL
Platinum Combustion Boat with handle	length 85mm	width 13mm	Ht 10mm		Capacity 9mL
Platinum Combustion Boat without handle	length 100mm	width16mm	Ht 13mm		Capacity 12mL
Platinum Combustion Boat without handle	length 60mm	width 9mm	Ht 9mm		Capacity 3mL
