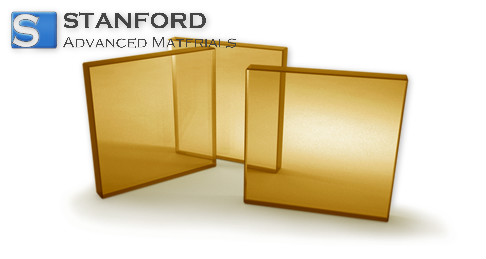

Discontinued (Discontinued) CY2304 Bismuth Silicate (BSO) Crystal Substrate

Catalogue Number	CY2304
Dimensions	20x20x0.5mm, 10x10x0.5mm, 5x5x0.5mm
Material	Bi12SiO20
Color	Light yellow
Growth Method	Czochralski method

Our undoped Czochralski-grown single crystals Bi12GeO20 (BGO) and Bi12SiO20 (BSO) exhibit optical homogeneity. They are produced without a central core, visible striations, shadow graphics, inclusions or bubbles.

INQUIRY

Description

Specification

Reviews

LAST RECOMMENDATION

NR2172 Gallium Nitride Wafer

CY2173 Sapphire Wafer

CY2174 Silicon wafer

CY2175 Silicon Carbide Wafer

SC2275 Silicon Thermal Oxide Wafers Supplier

SC2276 SOI-Wafer

ZN2277 Substrate for Zinc Oxide Wafer

Potassium Tantalate (KTaO3) Crystal Substrates

CY2298 Potassium Tantalate (KTaO3) Crystal Substrate

REQUEST A QUOTE

Send us an inquiry today to learn more and receive the latest pricing. Thank you!

* Your Name

* Your Email

For prompt processing, please use your company email address.

* Product Name

* Your Phone

* Country

United Kingdom

Comments

I would like to join the mailing list to receive updates from Stanford Advanced Materials.

Please enclose drawings:

Save files here or

* Check Code

Accepted file types: PDF, png, jpg, jpeg. Upload multiple files at once; each file must be under 2MB.

Crystal structure:	Cubic
Lattice constant:	a = 10.146 Å
Growth method:	Czochralski method
Melting point:	930℃
Density:	9.2 g/cm³
Mohs hardness:	4.5 Mohs
Dielectric constant:	εS11/ε0 42.7, εT11/ε0 47.5
Elastic stiffness coefficient (x10¹¹ N/m²):	CE11 1.33, CE44 0.25
Piezoelectric strain constant (C/m²):	e14 1.01
Wavelength range (nm):	470–7500
Electro‐optic coefficient (x10⁻¹² m/V):	r41 5
Refractive index:	2.45 @ 632.8 nm
Refractive index gradient (x10⁻⁵/cm):	< 5 @ 632.8 nm
Optical activity (mm⁻¹):	left 20° ~ @632.8 nm
Transmittance (%):	69 @ 632.8 nm
Crystal orientation:	<100>, <110>, <001> ±0.5°
Standard sizes:	45x45x0.5mm, 10x10x0.5mm, 25x25x0.5mm
Polishing:	Single-side polished or double-side polished

Crystal structure :	Cubic
Lattice constant :	a=10.146Å
Growth method :	Czochralski method
Melting point :	930℃
Density :	9.2g/cm³
Mohs hardness :	4.5 Mohs
Dielectric constant :	εS11/ε0 42.7、εT11/ε0 47.5
Elastic stiffness coefficient ( x10¹¹N/m²) :	C^E11 1.33、C^E44 0.25
The piezoelectric strain constants (C/m² ) :	e14 1.01
Through the range (nm) :	470~7500
Electro-optic coefficient (x10 ^-12 M/V)	r41 5
Refractive index :	2.45 @ 632.8nm
Refractive index gradient (x10 ^-5 /cm) :	< 5 @ 632.8nm
Opticity (mm ^-1 ) :	left 20° ~ @632.8nm
Transmittance (%):	69 @632.8nm
Crystal orientation :	<100>, <110>, <001> ±0.5°
Standard Size:	45x45x0.5mm, 10x10x0.5mm, 25x25x0.5mm
Polishing:	Single side polished or Both side polished
